Anodoro Special FDA 50° Shore 10mm (width 1.4m)
Anodoro Special FDA 50° Shore 10mm (width 1.4m)
VR4110000140S

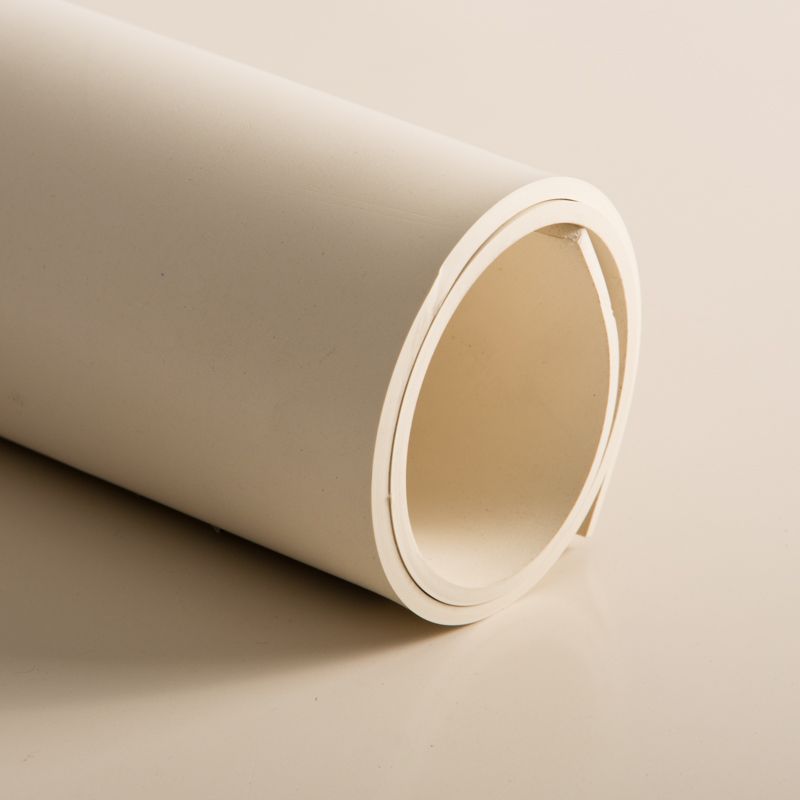

White FDA Food Grade Anodoro Special Nitrile (NBR) Rubber 10 mm (width 140 cm)
This white FDA food grade rubber sheet, with a thickness of 10 mm and a width of 140 cm, is a premium quality rubber offering excellent oil resistance and strong mechanical properties, including tensile strength, flexibility, compression resistance and low gas permeability. This FDA nitrile sheet is resistant to gasoline, diesel and lubricants. However, this nitrile (NBR) is not resistant to biofuels, biolubricants or biodiesel. It also has moderate ageing properties. The temperature range is between -20°C and +90°C. The FDA nitrile rubber complies with Food & Drug Administration standards.
Note: To determine the correct rubber quality, it is always important to consider the environment in which the product will be used and the requirements that must be met. If in doubt, please contact our customer service.
Properties of the White FDA Nitrile (NBR) Rubber Sheet 6 mm
- Sound insulation
- High resilience
- Leak prevention
- Air flow reduction
- Good wear resistance
- Excellent mechanical properties
- Low compression set
Applications of the FDA Approved Nitrile (NBR) Rubber Sheet
- Food industry
- Cosmetic industry
Characteristics of the FDA Compliant Nitrile (NBR) Rubber Sheet
Resistance Properties
| Gasoline | Poor |
| Lubricating oils | Good |
| Acids | Good |
| Alkalis | Moderate |
| Hydraulic phosphates | Poor |
| Liquid silicates | Good |
| Wear resistance | Good |
| Tear resistance | Good |
| Impact resistance | Poor |
| Resilience | Poor |
| Gas permeability | Good |
| Compression set | Good |
Technical Specifications
| Material | Rubber |
| Quality | Nitrile (NBR) |
| Colour | White |
| Thickness | 10 mm |
| Shore A hardness | 50 +/- 5 |
| Density g/cm³ | 1.45 |
| Tensile strength | 7 MPa |
| Elongation at break | >450% |
| Temperature range | -20°C to +90°C |
| Approval | FDA and CE1935/2004 |
| Width | 1,400 mm (1.4 m) |
| Roll length | 5 metres |
| Sales unit | Per roll (7 m²) |
Does this product not meet your requirements? Also view our FDA approved silicone rubber sheet or contact our customer service for assistance.
